MPO - CELLCO Data Center Solutions
Very quickly expanding progress also includes fiber optic installations. Users are constantly increasing strict
requirements on bandwidth and reliability links and increased fiber aggregation. These needs evaluate solutions
based on MPO connectors (called Multi-Fiber Push On Connector). The use of this kind of connector allows
to achieve the data transfer rate of 10, 40 and up to 100 Gb/s. An important feature of the use of Multi-
Fiber connectors is the maximum space saving within the server cabinets and shortening installation time. MPO connector technology:

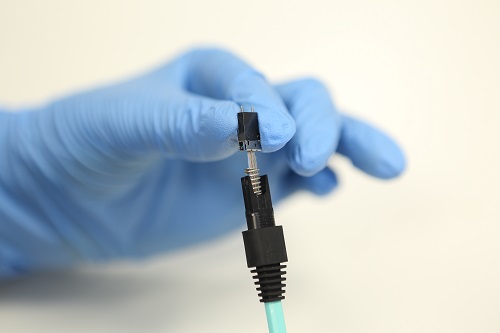

• Connectors are available in either male (with pins) and female (no pins),
• Adapter connects a male with female connector,
• The one connector consists of 12 fibers
• large concentration of fibers in one connector download data sheets PATCHCORD MPO/MTP
| FANOUT MPO - LC*

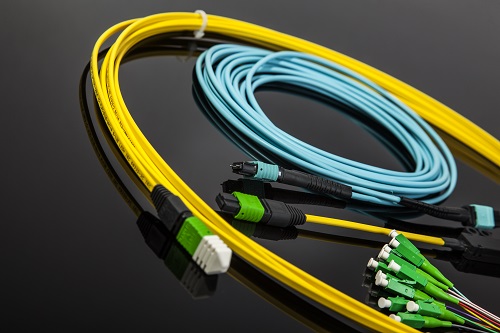

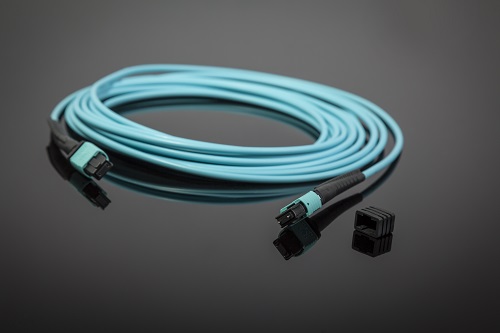

| | | | MPO/MTP ® patchcords features:
• 12 fibers in a single connector (24 on request)
• push-pull connectors eliminates the risk of damaging the ferrule during the connection
• 3 versions of connector PIN configuration: female-female, male-male, male-female
• the MPO-MPO Pre-Term links 2 MPO cassettes installed in the Plug&Play patch panels in 2 different cabinets
• thin, very flexible fibre-optic patch cable (round cable, Ø 3.0 mm and flat cable, 3.1mm x 0.3mm) with 12 fibres
• available fiber OS2, OM2, OM3 and OM4
• LSOH coating
• different lengths and colour available
• sticker labelling at both cable ends (optional)
• polarisation version A, B, C

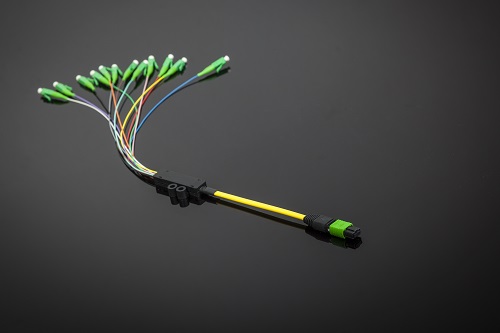

| MPO/MTP ® fanout features:
• 12 fibers in a single MPO/MTP ® connector (24 on request),
• thin, very flexible fibre-optic patch cable (round cable, Ø 3.0 mm and flat cable, 3.1mm x 0.3mm) with 12 fibres.
• available fiber OS2, OM2, OM3 and OM4
• LSOH coating
• different lengths ( length of single fiber harness, any overall length) and colour of single fibers available (OFS, DIN, Standard (telcordia)
any other on request)
• different boot options: flex, short
• standard connectors finished with equal or cascade length
• for duplex connectors clips or uniboot available
• with capability of male and female connectors
• Sticker labelling at both cable ends (optional)
• compact fanout harness housing.
• pigtails in harness terminated (Ø 900 um or Ø 2.0 mm) with any type connector required: SC, LC, E2000, FC, ST, LC Duplex Uniboot.
(APC or PC available)
• project-specific assemblies are available on request
*any type connector required: SC, LC, E2000, FC, ST, LC Duplex Uniboot (APC or PC available) | | Data sheets patchcords MPO - pdf | Data sheets fanouts MPO - LC - pdf |
|
|

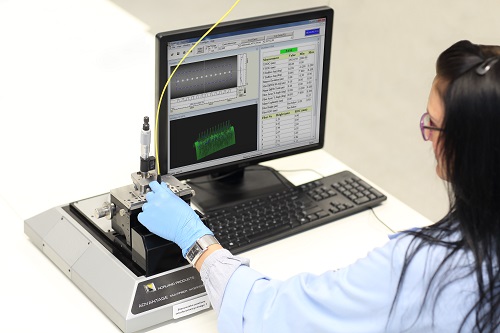

| Quality control on each level of producing process

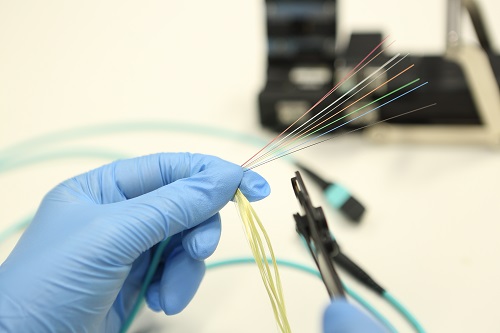

| 12 fibers in 1 connector
|

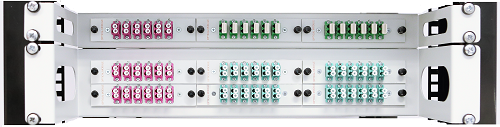

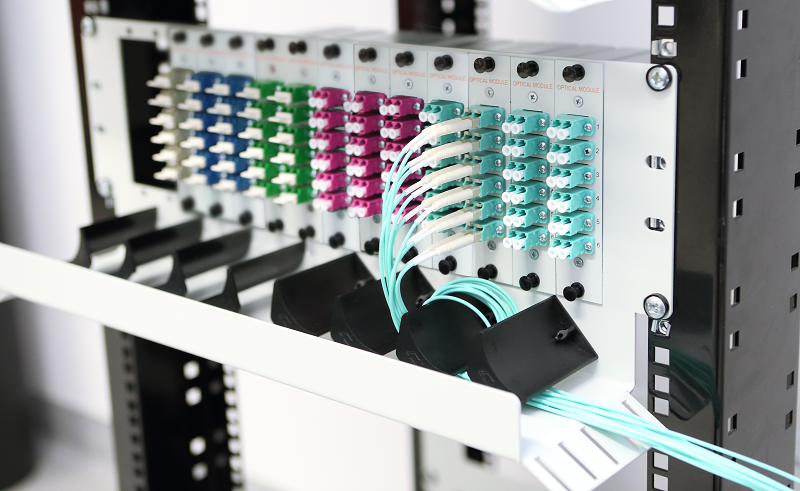

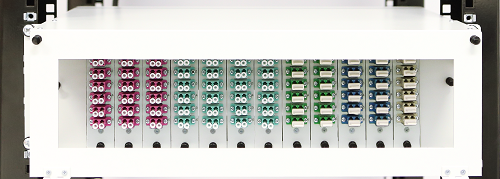

Modulary equipped 19-inch 1U, 2U, 3U, 4U panels/fiberbox for LGX Cassettes
• Modulary equipped 19-inch 1U, 2U, 3U, 4U panels/fiberbox for LGX Cassettes • Designed to be mounted inside rack serwer cabinet • High density panel with up to 14 Cassettes • Enables to quick mount LGX MPO Cassettes • Patch cord management within the same organizers or available in additional modules Material used: powder painted metal (standard colour: grey*, different colours available on request)
|
