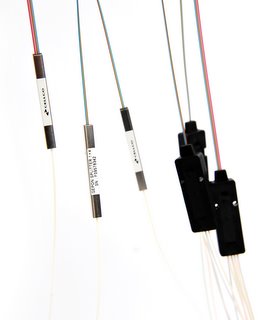

Planar splitters 1x32 (PLC)

Applications

Telecommunication

Data transmission

Cable TV

FTTH, FTTC, FTTB

Configuration 1x4 /8/16/32

Telcordia GR-1209 & GR-1221 qualified

Low attenuation

Low PDL

Compact size

Different forms

SPECIFICATIONS	UNITS	1x4	1x8	1x16	1x32
Optical fiber	n/a	Corning SMF-28 Fiber Equivalent
Operating Wavelength	nm	1260-1360/1480-1600
Insertion Loss (Max)	dB	<=7, 3dB	<=10, 7	<=14, 2	<=17, 5
Uniformity	dB	<=0, 8	<=1, 0	<=1, 5	<=2, 0
PDL	dB	<=0, 1	<=0, 1	<=0, 3	<=0, 3
Return Loss	dB	>=55
Operating Temp. Range	C	-40 to +85
