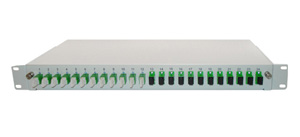

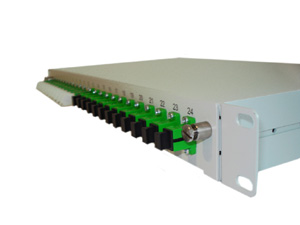

CRISTAL 1U

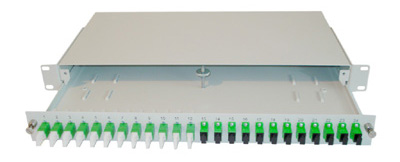

The new design of 1U fiber optic patchpanel allows you to easy installation and preservation the fiber optic connections. The 19-inch construction with a slide panel and high density provides a very accessible termination and maintenance without removing the panel from the rack. Rackmount patchpanel enclosures are designed for direct termination of up to 48 fibers (24xSC DUPLEX).

Specyfication :

Standard 1U 19”

Use of steel locking screw technology allows easy opening

Easy access to cables and pigtails

Adjustable position of side holders

Max 4 splice cassettes

Max 48 ports (24 duplex SC)

Ports SC, ST, E2000. LC

Application:

Telecommunication networks

CaTV

PON (Passive Optical Network)

FTTX

Dimensions :

1Ux19”x220mm

Way of order :

	Available ports	Products code
CRISTAL	12SC	G-PP-CRIS-12SC-FE*
	12SCDX	G-PP-CRIS-12SCDX-FE*
	24SC	G-PP-CRIS-24SC-FE*
	24SCDX	G-PP-CRIS-24SCDX-FE*
	12ST	G-PP-CRIS-12ST-FE*
	24ST	G-PP-CRIS-24ST-FE*
	36ST	G-PP-CRIS-36ST-FE*

* fully loaded with adaptors, pigtails, cable glands

Accessories :
Adapters (SC/PC, SC/APC, FC/PC, FC/APC, ST/PC, LC/PC, E2000/PC, E2000/APC, and other)
Trays for 12 splices
Splice cover trey
PG gland (for cable)
Pigtails organizer
