WallBox 24 and 48 patchpanel

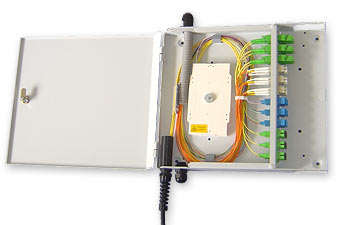

Naścienna przełącznica światłowodowa WallBOX 24The Cellco’s WBL series of cabinets are ideal for LAN, WAN and CATV fiberoptic applications that recquire a lockable wall mounted enclosure. The WBL cabinets are either one- or two- door directly terminated. The enclosures are designed to support all costumers solutions,  they are marked with smart and easy access. WBL enclosures are available preloaded with any industry standard adapter.

Features:

Removable locked doors, easy and smart access
Superior cable and pigtails management through the use of bend radius control at all cable exits and strain relief protection
Available pre-loaded with any industry-standard adapter
Ports numbered for identification
1,5mm steel finished powder painting RAL 7035 (gray)  or RAL 9005 (black)


Applications:


Naścienna przełącznica światłowodowa WallBOX 24WAN, LAN, CaTV
Internet Providers
Energetics
transparent plastic cover


Dimensions:

340x350x60mm


Standard equipped with:

WBL Box
key locker
adapter panel (12 SC SX/E2000, 12 SC DX, 24 SC SX/E2000, 12 ST/FC, 24 ST/FC)

 WallBOX 24

Optionally equipped with:

splice cassettes (12 heat shrink each)
cover
adapters
transparent cover for protection of splicing chamber
PG gland
Naścienna przełącznica światłowodowaprotection brush


Adapter’s panel:


WBL24-12SCSX – 12 ports  SC simplex/E2000 simplex
WBL24-12SCDX – 12 ports  SC duplex
WBL24-24SCSX – 24 ports  SC simplex/E2000 simplex
WBL24-12STFC – 12 ports ST/FC
WBL24- 24STFC – 24 ports ST/FC
WBL24 -2xLGX – 2ports for LGX module
